描述
| Thermal Resistant | |
| Operating Temperature | 30°C-120°C |
| Working Fluid | H₂O |
| Material | Copper |
| Wick Structure | Copper Mesh |
| Model | Overall Dimension | Mounting Hole |
| VC003 | 90 x 90 x 3.3 mm | 80 x 80 mm |
| VC027 | 90 x 90 3.0 mm | 75 x 75 mm |
| VC043 | 106 x 82 x 3.0 mm | 94 x 56 mm |
| VC102 | 90.5 x 90.5 x 4.6 mm | 75.3 x 79 mm |
| VC103 | 108 x 81 x 4.5 mm | 95 x 69 mm |
| VC111 | 120 x 82 x 3.0 mm | 105 x 65 mm or 105 x 64 mm |
| VC123 | 106 x 82 x 3.0 mm | 90 x 54 mm |
| VC136 | 113 x 78 x 4 mm | 97.5 x 57.6 mm / clip type |

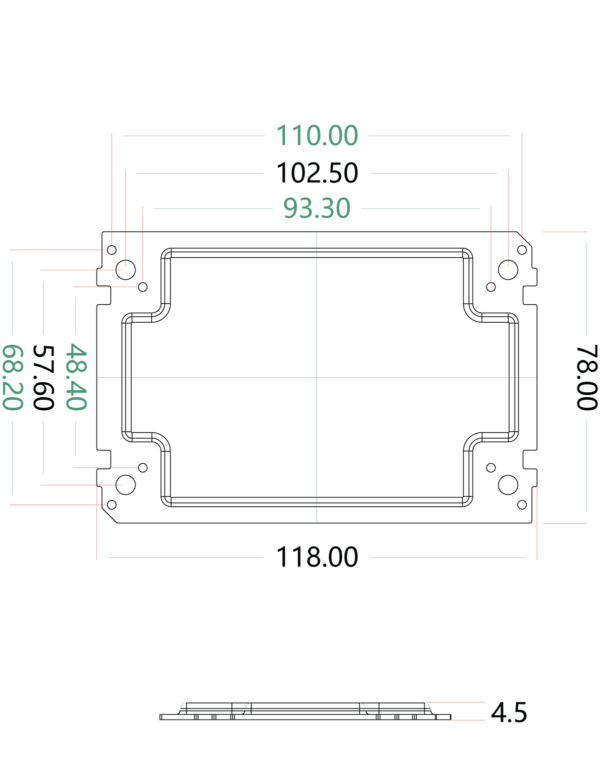

| VC175 | 118 x 78 x 4.5 mm | 102.5 x 57.6 mm / clip type |
| VC195 | 94 x 94 6.0 mm ( 3mm pedestal) | 75 x 75 mm / 78 x 78 mm |
| VC202 | 118 x 92.4 x 4.9 mm | 103 x 50 mm |
| VC214 | 110 x 80 x 4.0 mm | 90 x 54 mm |
| VC252 | 126.8 x 97.8 x 4.0 mm | 81 x 69 mm (clip) |
| VC258 | 120 x 82 x 3.0 mm | 106 x 72 mm |
| VC267 | 130 x 104 x 4 mm | 80 x 80 mm |
