CPU Support

Intel/AMD

CPU Socket

Intel LGA 1700/1200/115X

AMD AM5/AM4

Screw Type

#6-32/M3

Installation Torque

6-10 in-lb/5-7 in-lb

Solution

1.5U & Up

Dimensions

93.4 x 95.0 x 35.2 mm

Weight

392g (Fan + Heatsink)

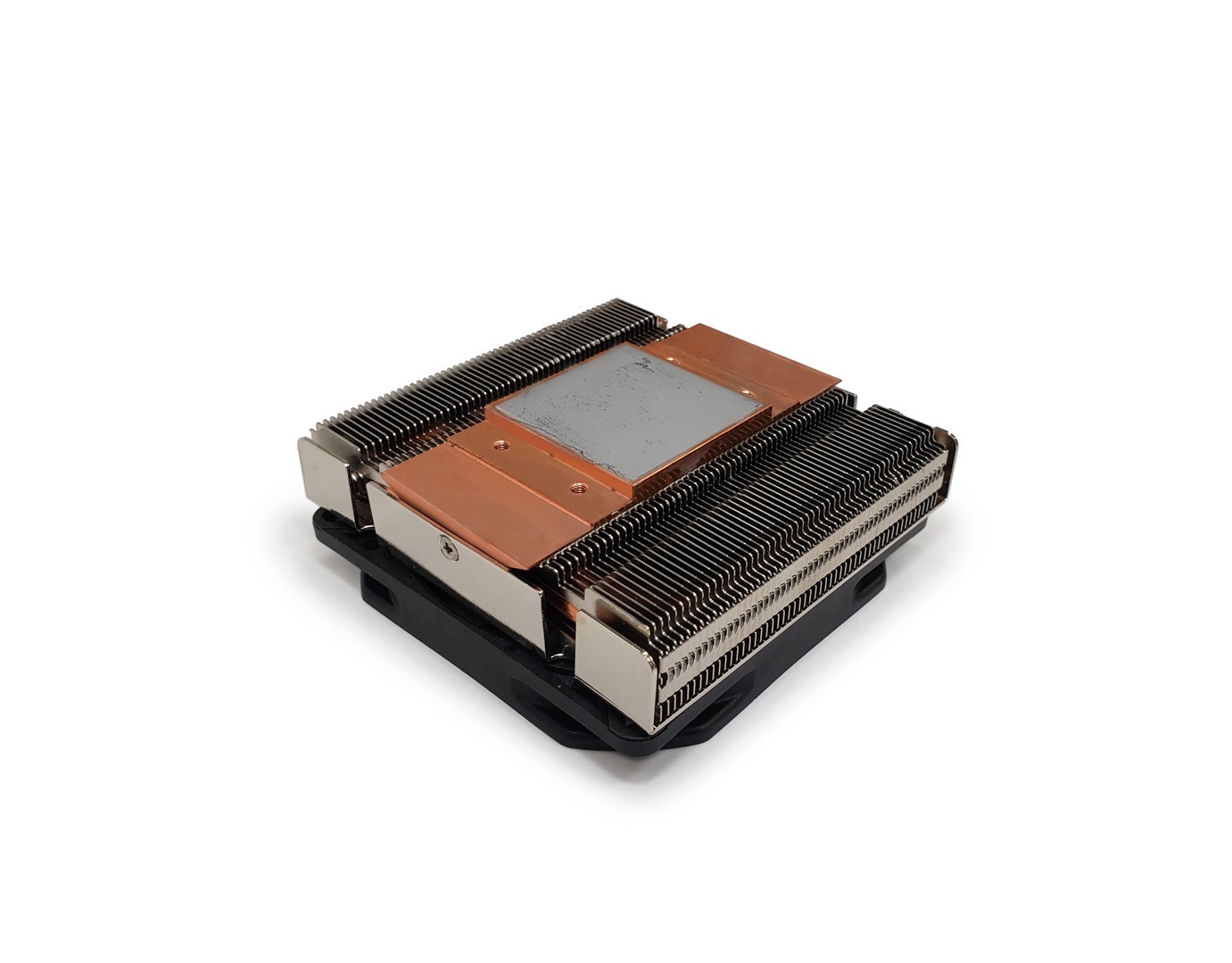

Material

Copper Base & Aluminum Fins with Heat Pipe Embedded

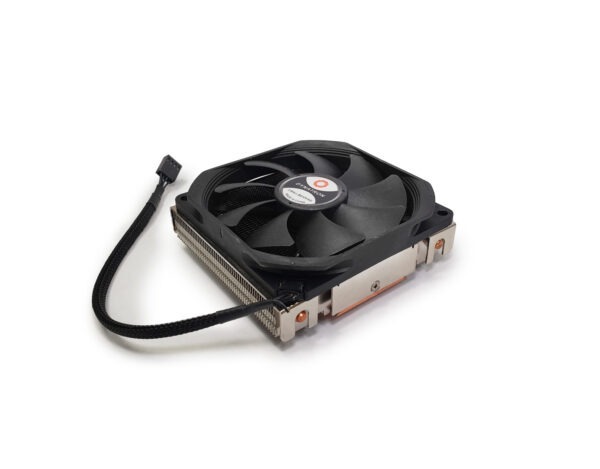

Fan Dimension

92.0 x 92.0 x 12.0 mm

Speed

At Duty Cycle 0~20%: 800 ± 200 RPM

At Duty Cycle 50%: 1900 ± 10% RPM

At Duty Cycle 100%: 3200 RPM

Bearing

Double Ball

Rated Voltage

12V

Power

At Duty Cycle 0~20%: 0.2 W

At Duty Cycle 50%: 0.5 W

At Duty Cycle 100%: 1.6 W

Air Flow

At Duty Cycle 0~20%: 9.88 CFM

At Duty Cycle 50%: 21.38 CFM

At Duty Cycle 100%: 35.78 CFM

Noise Level

At Duty Cycle 0~20%: 22.3 dBA

At Duty Cycle 50%: 26.1 dBA

At Duty Cycle 100%: 36.2 dBA

Air Pressure

At Duty Cycle 0~20%: 0.28 mm-H2O

At Duty Cycle 50%: 1.22 mm-H2O

At Duty Cycle 100%: 3.21 mm-H2O

Lead Wire Pin Out

Pin#1- Black(-)

Pin#2- Black (+)

Pin#3- Black (Tachometer/ Signal Output)

Pin#4- Black (PWM)

Thermal Grease

Shin-Etsu 7762 or Equivalent

Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
