Intel

Socket LGA775

3U Server and Up

83.0 x 83.0 x 74.0 mm

270g ± 5g

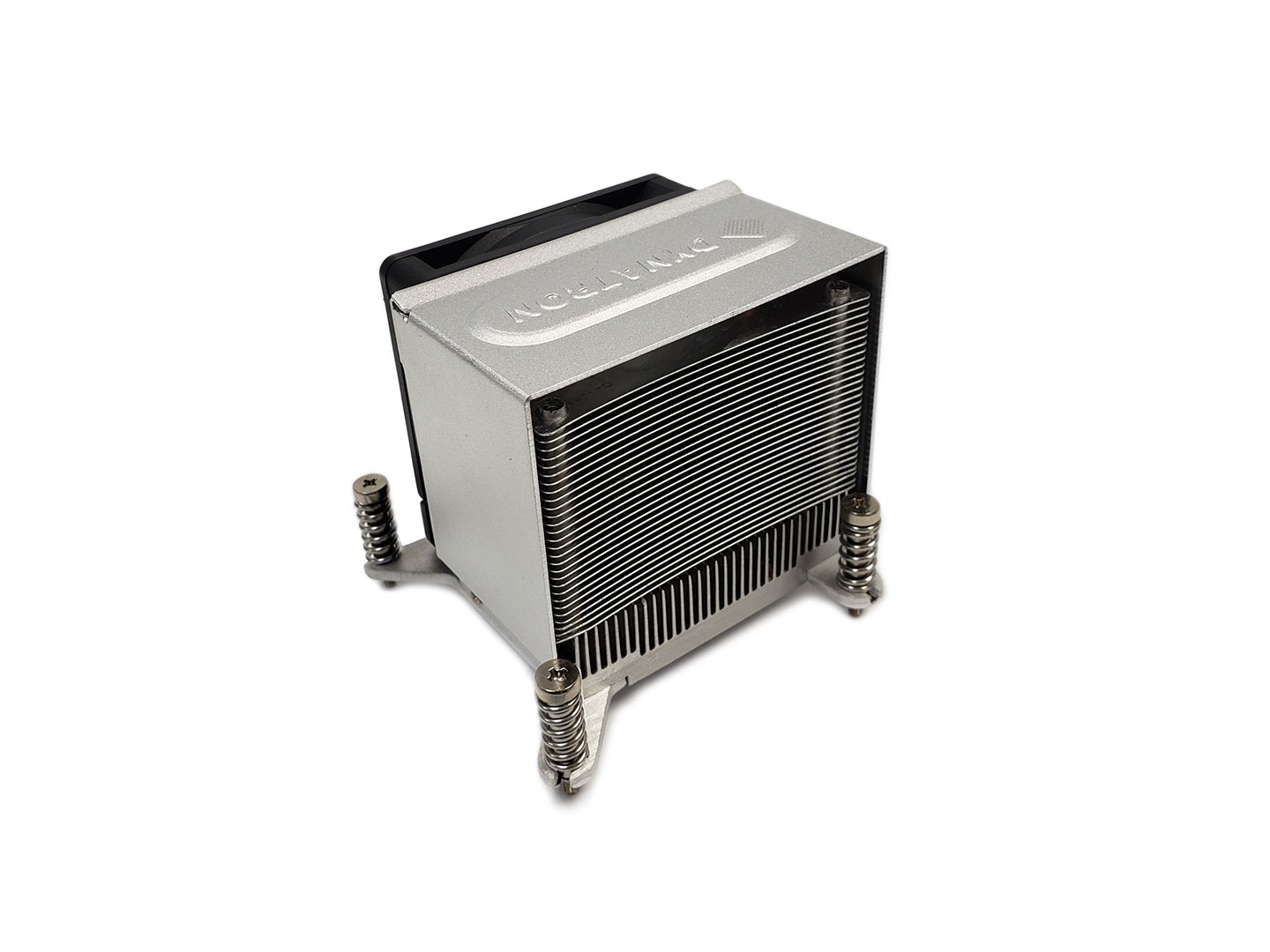

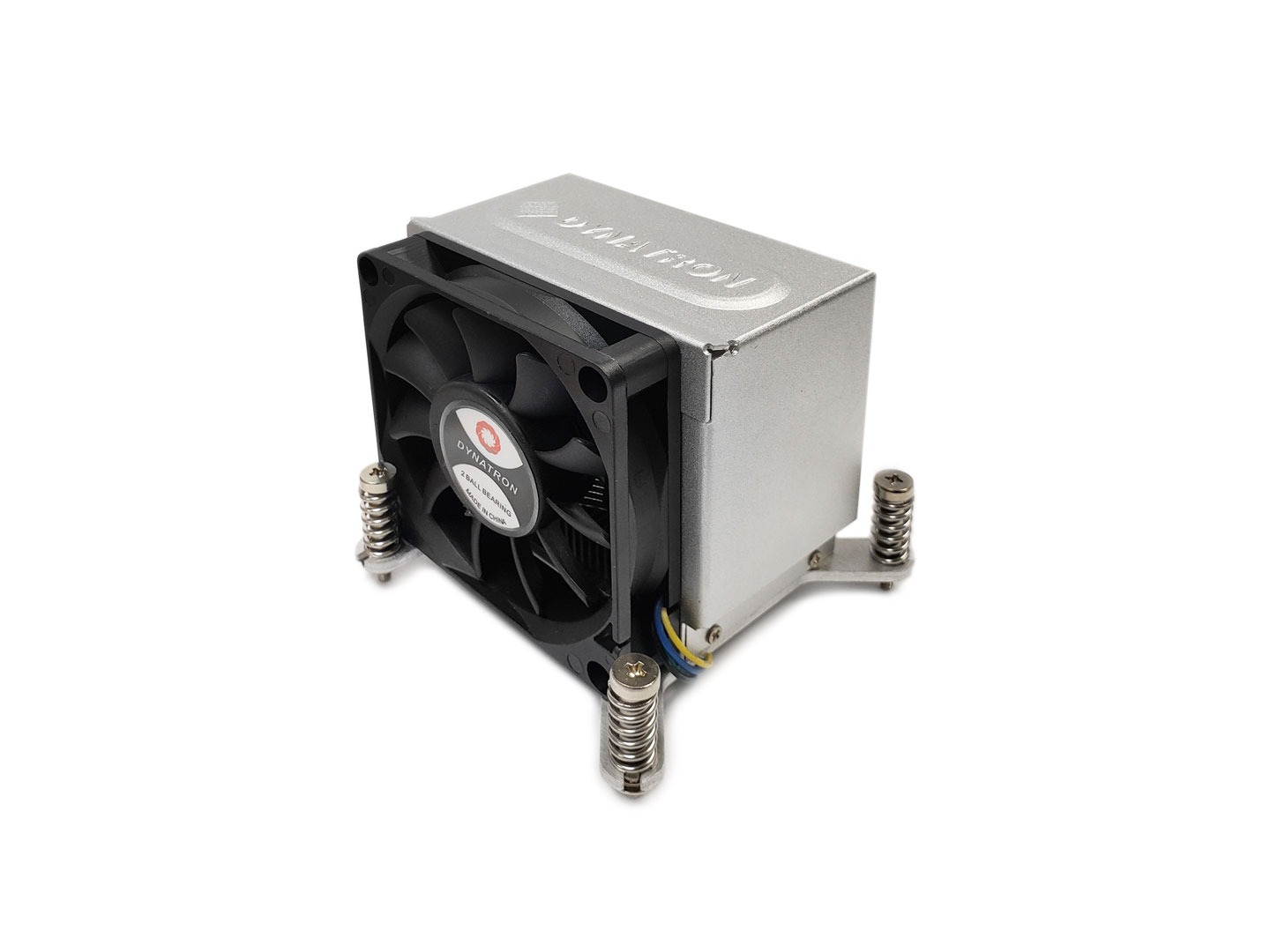

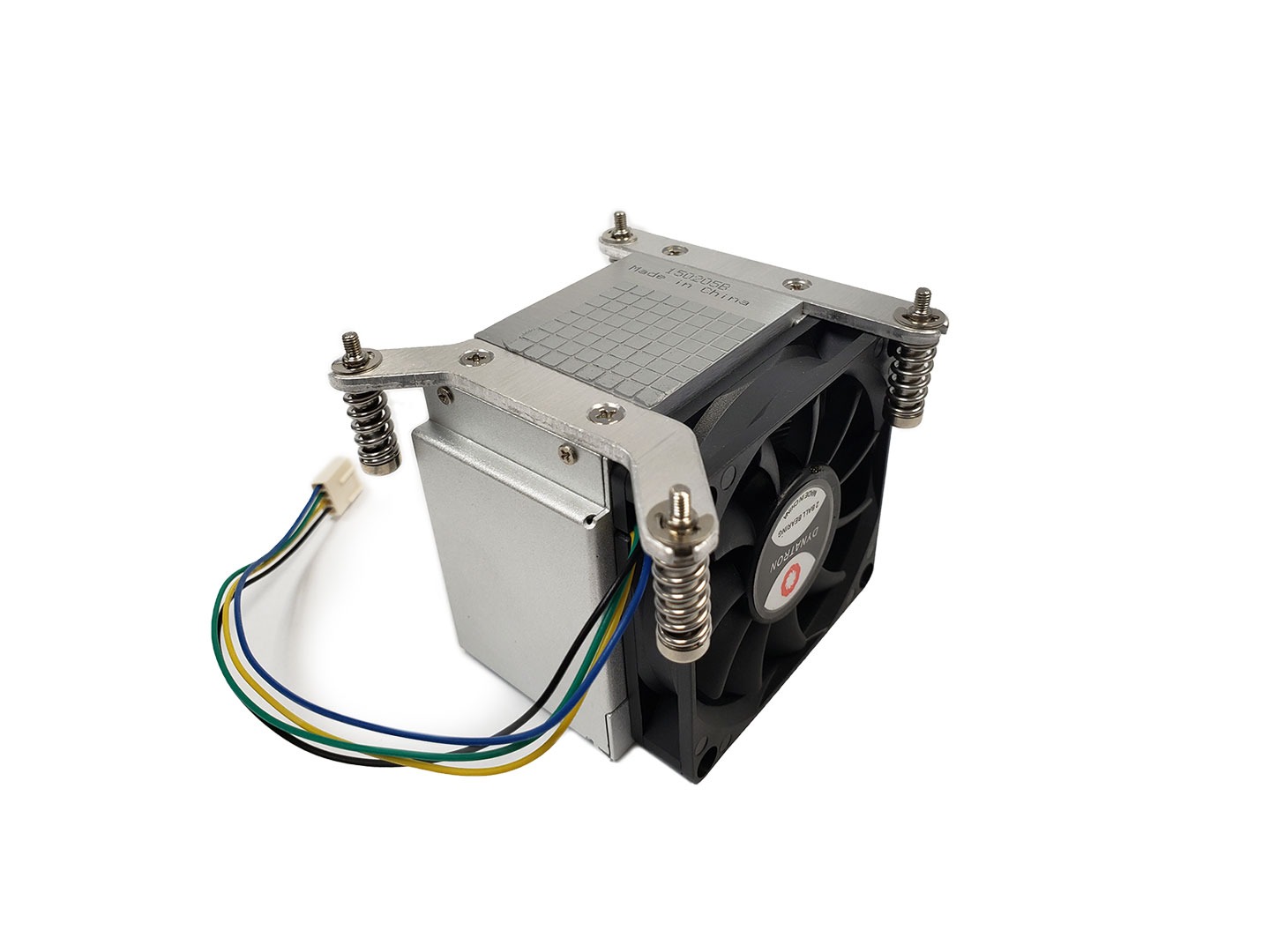

Aluminum Base and Stacked Fin with Heatpipe Connected

70 x 70 x 15 mm

At Duty Cycle 0~25%: 3300±10% RPM

At Duty Cycle 50%: 4500±10% RPM

At Duty Cycle 100%: 6500 RPM Min.

2 Ball Bearing

12V

At Duty Cycle 0~25%: 1.92 W

At Duty Cycle 50%: 2.88 W

At Duty Cycle 100%: 9.6 W

At Duty Cycle 0~25%: 25.35 CFM

At Duty Cycle 50%: 34.57 CFM

At Duty Cycle 100%: 49.93 CFM

At Duty Cycle 0~20%: 21.5 dBA

At Duty Cycle 50%: 43.0 dBA

At Duty Cycle 100%: 59.14 dBA

At Duty Cycle 0~25%: 2.78 mm-H2O

At Duty Cycle 50%: 5.17 mm-H2O

At Duty Cycle 100%: 10.78 mm-H2O

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
