描述
*注意：要查找与您的处理器对应的包裹承运商，请访问官方英特尔链接获取更多信息。

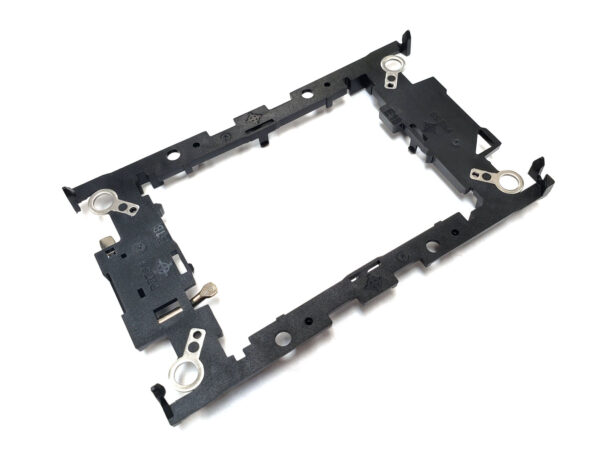

Dynatron S2、S3、S4、S5、S6 和 S7 每个都配备 E1B 型号的包裹承运器。
E1A 和 E1C 型号的包裹承运器不包括在内，但可根据要求提供。
|
CPU Support |
Intel |
|
CPU Socket |
FCLGA 4677 |
|
Screw Type |
#8-32 |
|
Installation Torque |
8 in-lb |
|
Solution |
3U Server and Up |
|
Dimensions |
118 x 95 x 106 mm |
|
Weight |
659.3 g |
|
Material |

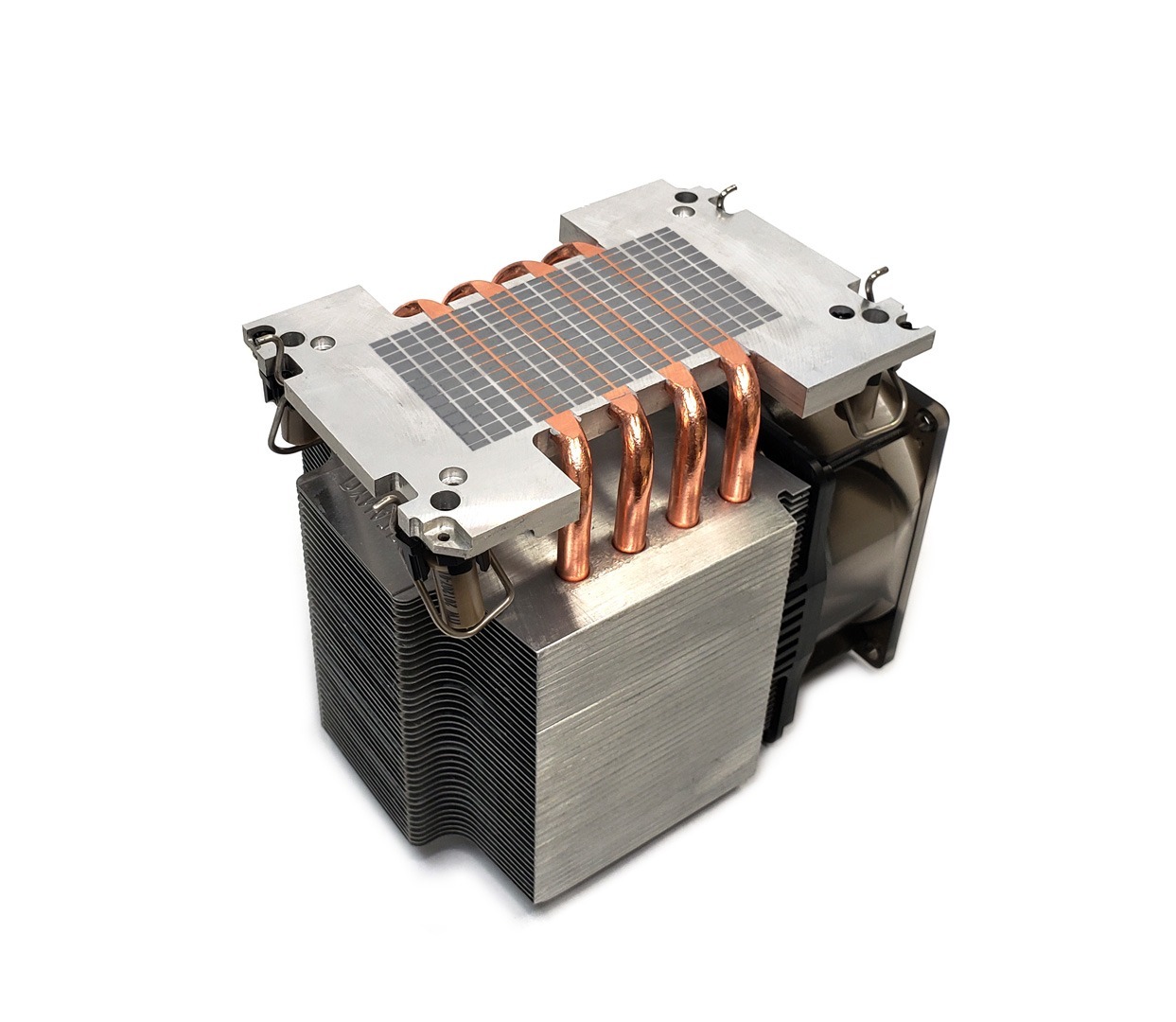

Aluminum Stacked-Fin with Heat Pipes directly contact CPU |
|
Fan Dimension |
80 x 80 x 38 mm |
|
Speed |
At Duty Cycle 0~20%: 1300± 200 RPM At Duty Cycle 50%: 2450± 10% RPM At Duty Cycle 100%: 4500±10% RPM |
|
Rated Voltage |
12V |
|
Bearing |
Double Ball |
|
Power |
At Duty Cycle 0~20%: 1.20 W At Duty Cycle 50%: 2.64 W At Duty Cycle 100%: 9.00 W |
|
Air Flow |
At Duty Cycle 0~20%: 22.23 CFM At Duty Cycle 50%: 41.90 CFM At Duty Cycle 100%: 76.95 CFM |
|
Noise Level |
At Duty Cycle 0~20%: 23.95 dBA At Duty Cycle 50%: 37.71 dBA At Duty Cycle 100%: 50.91 dBA |
|
Air Pressure |
At Duty Cycle 0~20%: 1.068 mm-H2O At Duty Cycle 50%: 3.794 mm-H2O At Duty Cycle 100%: 12.798 mm-H2O |
|
Lead Wire Pin Out |
Pin#1-Black(-) |
|
Thermal Grease |
Shin-Etsu 7762 or Equivalent |
|
Life – Continuous operating under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*所有产品规格和产品图片均可能在不经通知的情况下更改。
