AMD

Socket F

2U Server and Up

100.0 x 71.0 x 65.5 mm

275 ± 5 g

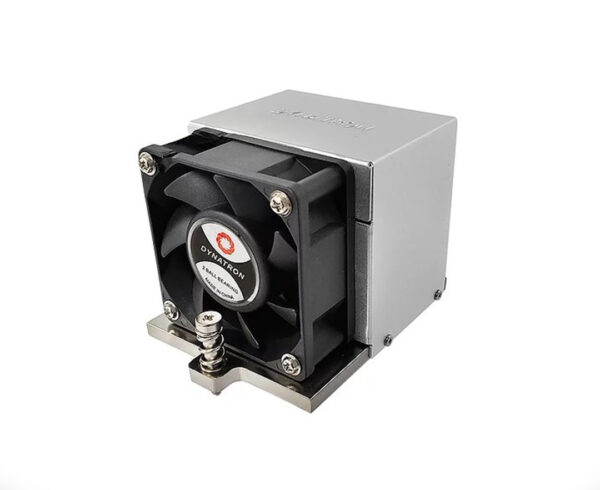

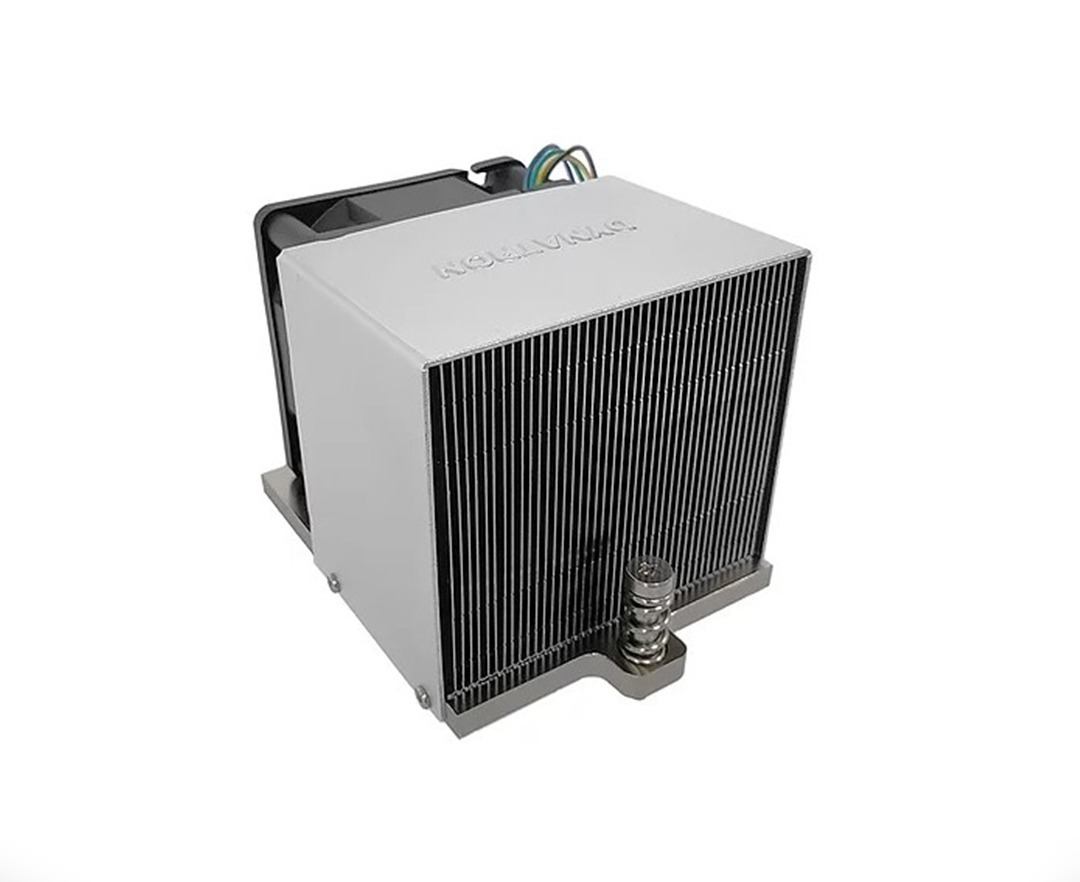

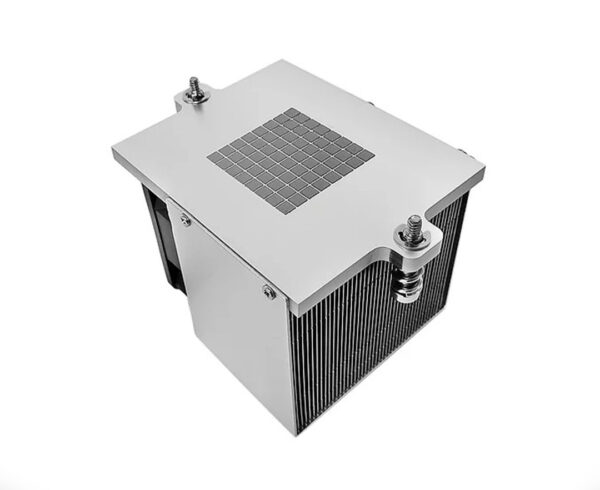

Aluminum Heat Sink with Stacked Fin

60 x 60 x 25 mm

At Duty Cycle 0%: 1100 + 200RPM
At Duty Cycle 20%: 1100 + 200RPM
At Duty Cycle 50%: 2500RPM + 10%
At Duty Cycle 100%: 6000RPM + 5%

2 Ball Bearing

12V

At Duty Cycle 0%: 0.60W
At Duty Cycle 20%: 0.60W
At Duty Cycle 50%: 1.44W
At Duty Cycle 100%: 3.60W

At Duty Cycle 0%: 6.0 CFM
At Duty Cycle 20%: 6.0 CFM
At Duty Cycle 50%: 15.3 CFM
At Duty Cycle 100%: 32.81 CFM

At Duty Cycle 0%: 16.0 dBA
At Duty Cycle 25%: 16.0 dBA
At Duty Cycle 50%: 28.1 dBA
At Duty Cycle 100%: 44.7 dBA

Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)
