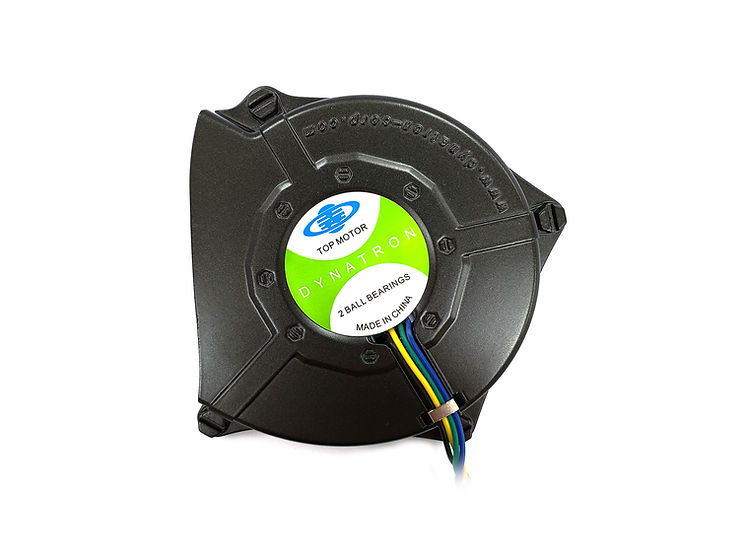

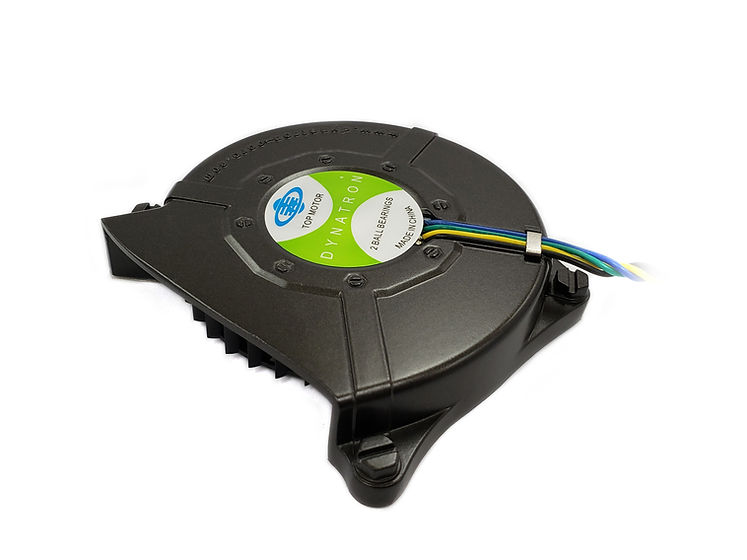

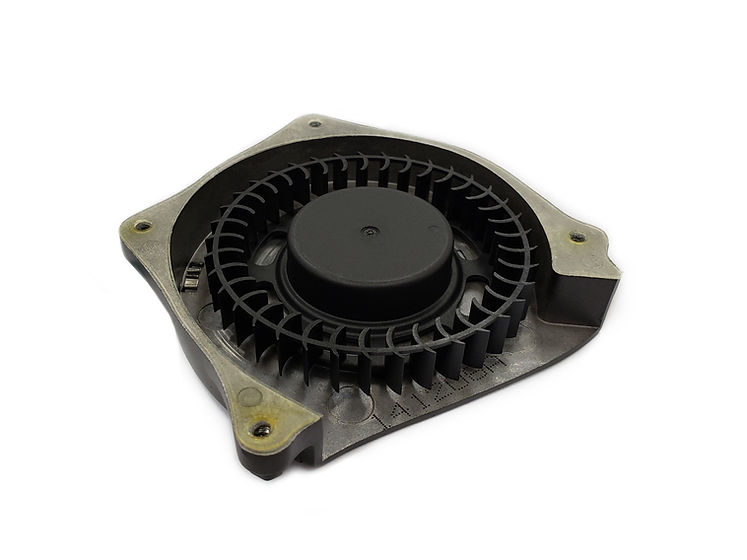

12 V 75mm x 75mm x 15mm DC Blower Fan from 800rpm to 6000rpm fan speed.
Additional Information
| Dimensions | 75 x 75 x 15 mm |
|
Frame |
Aluminum |
|
Impeller |
PBT UL94V-0 (Black) |
|
Weight |
70±5 grams |
|
Operating Temperature |
– 10 °C ~ + 65 °C (65 %RH) |
|
Storage Temperature |
– 30 °C ~ + 70 °C (65 %RH) |
|
MTBF |
Dual Ball Bearing: 70,000 hours |
*All product specifications and product images are subject to change without notice.
Variations
| Model No. | DB1275151BU | DB127515BH | DB127515BM | DB127515BL |
| Voltage | DC | DC | DC | DC |
| Voltage (V) |
12 | 12 | 12 | 12 |
| Speed (RPM) | 6000±10% | 5000±10% | 4000±10% | 3000±10% |
| Bearing | 2-Balls | 2-Balls | 2-Balls | 2-Balls |
| Current (Amp) | 1.2 | 0.9 | 0.4 | 0.2 |
| Watts | 14.4 | 10.8 | 4.8 | 2.4 |
| Air flow | 17.7 | 14.719 | 11.9 | 8.83 |
| Static Pressure | 53.1 | 36.17 | 23.6 | 13.02 |
| Noise | 55 | 51.7 | 46.1 | 40.61 |
| RoHS | Compliance | Compliance | Compliance | Compliance |
