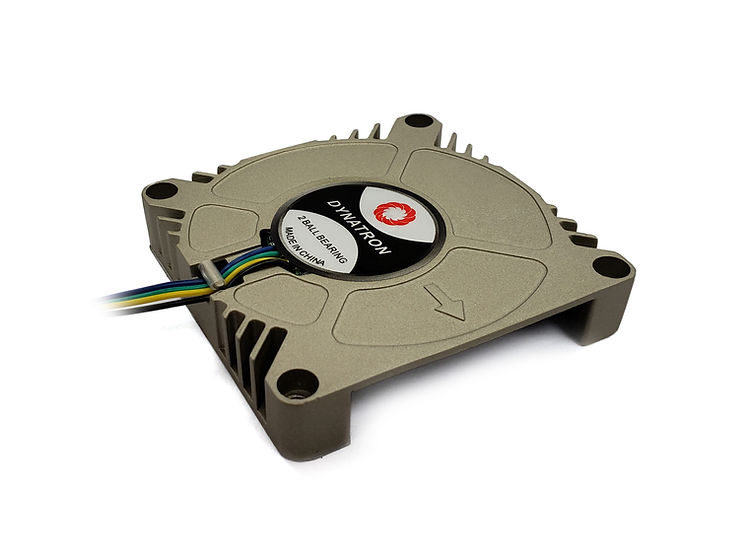

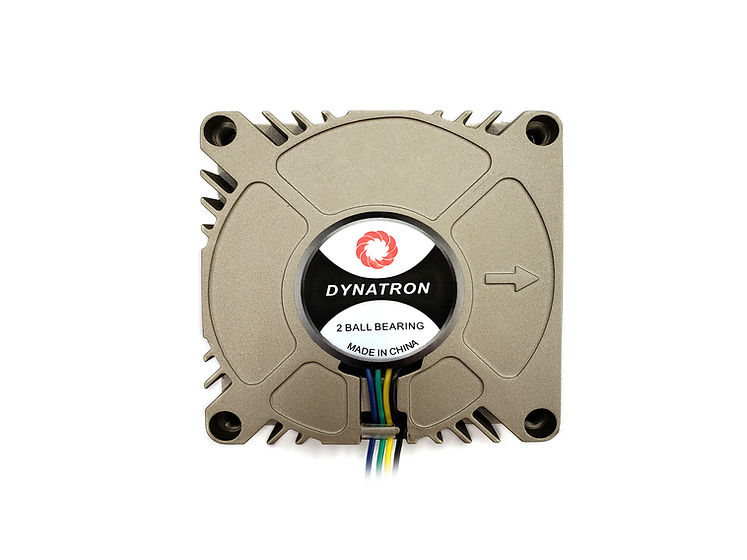

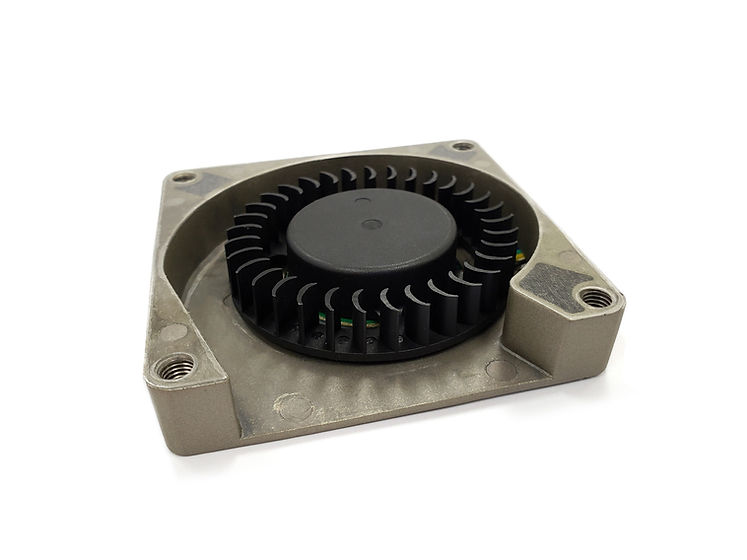

12 V 70mm x 70mm x 15mm DC Blower Fan from 5000rpm to 6000rpm fan speed.
Additional Information
|
Dimension |
70 x 70 x 15 mm |
|
Frame |
Aluminum (GP) |
|
Impeller |
PBT UL94V-0 (Black GP) |
|
Weight |
77±5grams |
|
Operating Temperature |
– 10 °C ~ + 65 °C (65 %RH) |
|
Storage Temperature |
– 30 °C ~ + 70 °C (65 %RH) |
|
MTBF |
Dual Ball Bearing: 70,000 hours |
*All product specifications and product images are subject to change without notice.
Variations
| Model No. | DB127015BU-PWM | DB127015BH-PWM |
| Voltage | DC | DC |
|
Voltage (V) |
12 | 12 |
| Speed (RPM) | 6000±10% | 5000±10% |
| Bearing | 2-Balls | 2-Balls |
| Current (Amp) | 0.73 | 0.46 |
| Watts (W) | 8.76 | 5.52 |
| Air Flow | 14.321 | 9.4 |
| Static Pressure | 50.458 | 26.4 |
| Noise | 53.8 | 48.00 |
| RoHS | Compliance | Compliance |
