描述

CPU Support
Intel® Xeon ® Platinum / Gold / Silver/ Bronze Family Processor (formerly Cascade Lake, Skylake)
CPU Socket
FCLGA 3647 Square ILM
Screw Type
M4
Installation Torque
12 in-lb
Solution
1U Server and Up
Dimensions
93 x 90.5 x 28 mm
Weight
470 g
Material

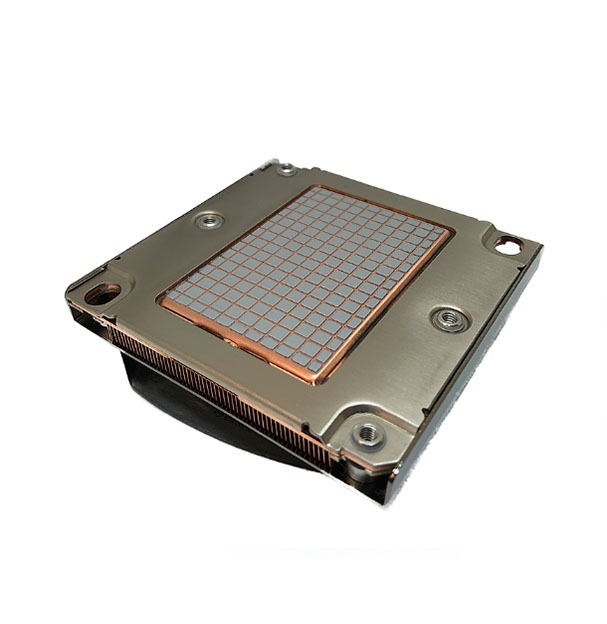

Copper1100 Heatsink with Vapor Chamber Base

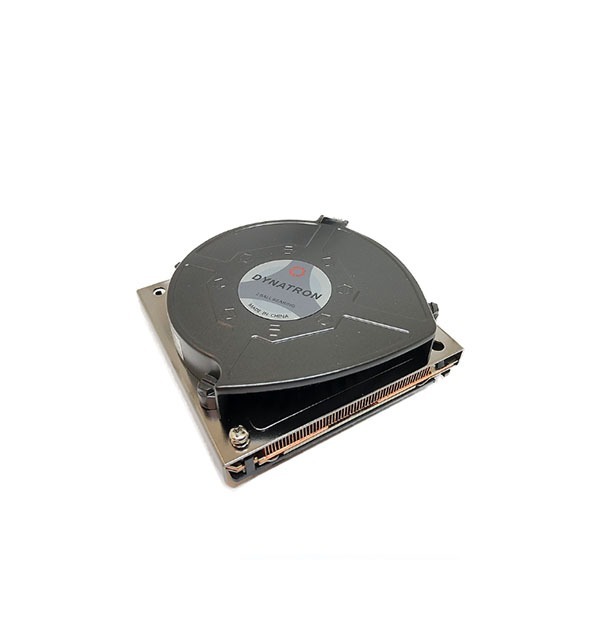

Fan Dimension
Ø90 x 15 mm
Speed
At Duty Cycle 20%: 1000 ± 200 RPM
At Duty Cycle 50%: 2500 ± 10% RPM
At Duty Cycle 100%: 5000 ± 10% RPM
Rated Voltage
12V
Bearing
Ball Type, Double
Power
At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 2.6 W
At Duty Cycle 100%: 12 W
Air Flow
At Duty Cycle 20%: 6.8 CFM
At Duty Cycle 50%: 11.0 CFM
At Duty Cycle 100%: 19.0 CFM
Noise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 31.5 dBA
At Duty Cycle 100%: 46.4 dBA
Air Pressure
At Duty Cycle 20%: 2.8 mm-H2O
At Duty Cycle 50%: 18 mm-H2O
At Duty Cycle 100%: 46 mm-H2O
Lead Wire Pin Out
Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
Thermal Grease
Shin-Etsu 7762 or Equivalent
Life – Continuous operating
under normal temperature
(40 °C or 104 °F)
70,000 Hours
*所有产品规格和产品图片均可能在不经通知的情况下更改。
