CPU Support

AMD

CPU Socket

FM2+/FM2/AM2/AM2+/AM3/AM3+/FM1

Solution

1U Server

Dimensions

106 x 79 x 27.5 mm

Weight

500g ± 5g

Material

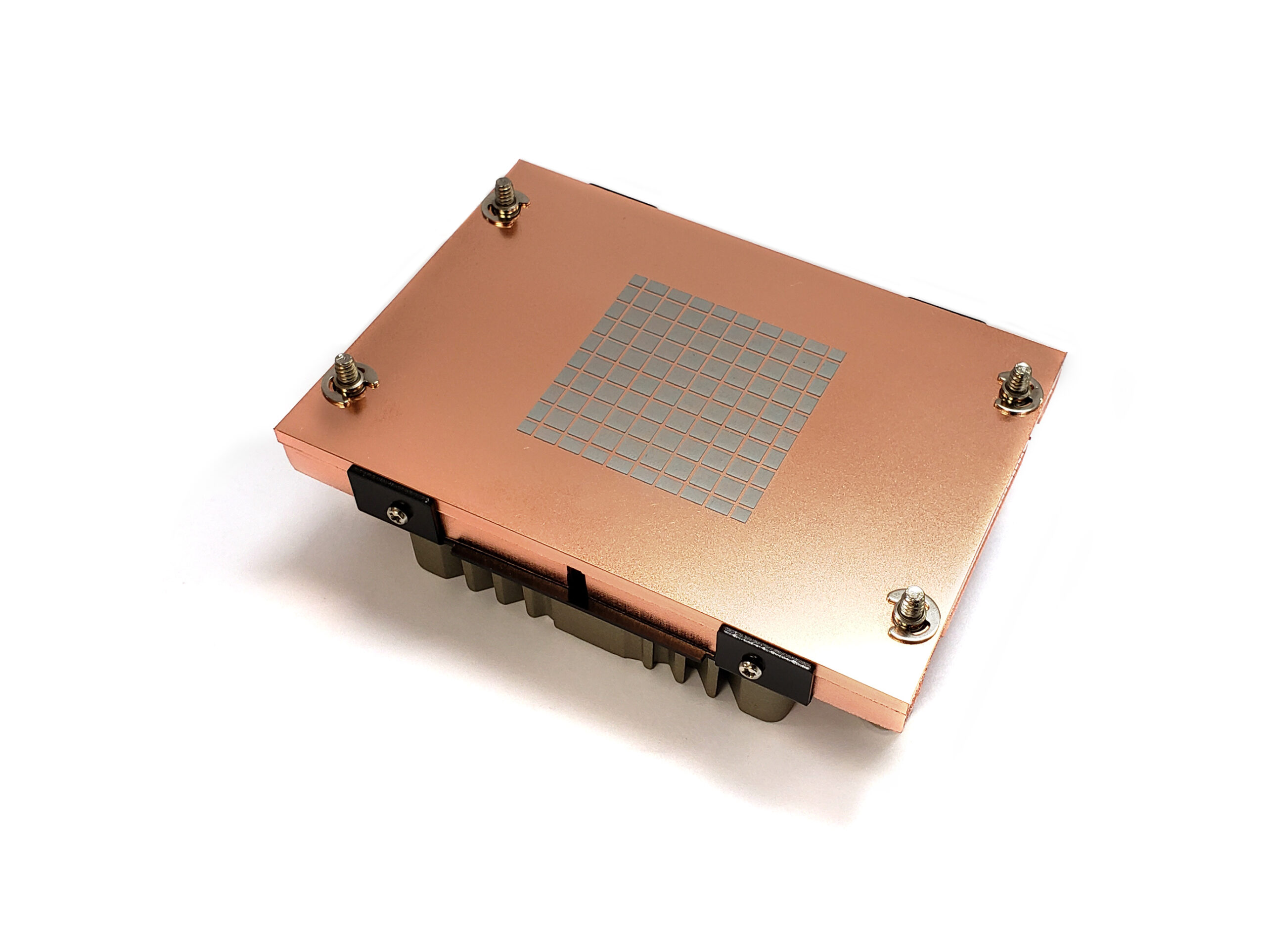

Skived Copper Heatsink

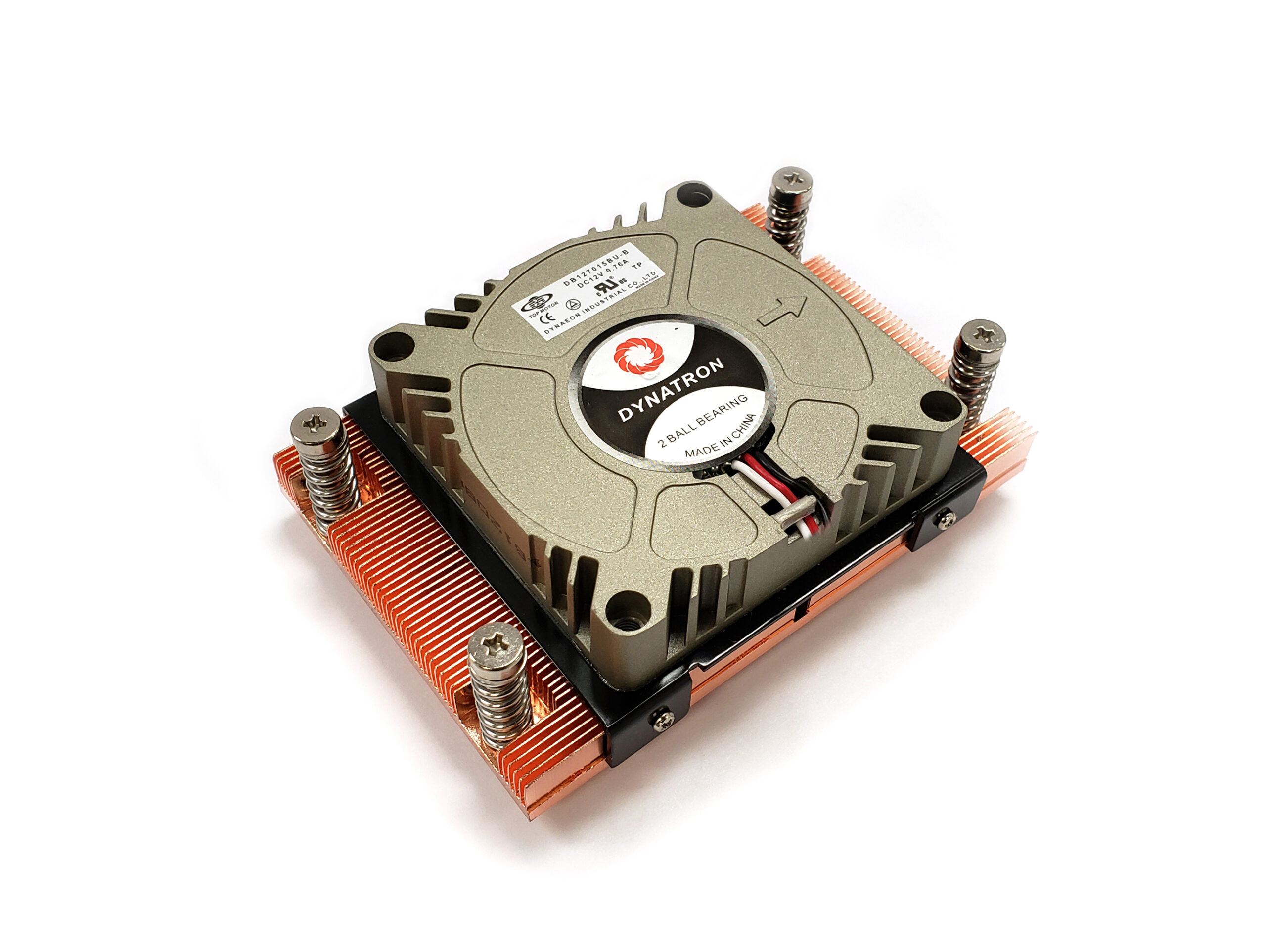

Fan Dimension

70 x 70 x 15 mm

Speed

At Duty Cycle 100%: 7000 ± 10% RPM

Power

At Duty Cycle 100%: 8.76 W

Bearing

2 Ball Bearing

Rated Voltage

12V

Air Flow

At Duty Cycle 100%: 12.83 CFM

Noise Level

At Duty Cycle 100%: 54.4 dBA

Air Pressure

At Duty Cycle 100%: 1.70 inch-H2O

Lead Wire Pin Out

Pin#1 – Black (-)

Pin#2 – Red (+)

Pin#3 – White (Tachometer / Signal Outcput )
