CPU Support

AMD® Ryzen

CPU Socket

AM4/AM5

Screw Type

#6-32

Installation Torque

6-10 in-lb

Solution

2U Server and Up

Dimensions

107 x 78 x 67 mm

Weight

400 g

Material

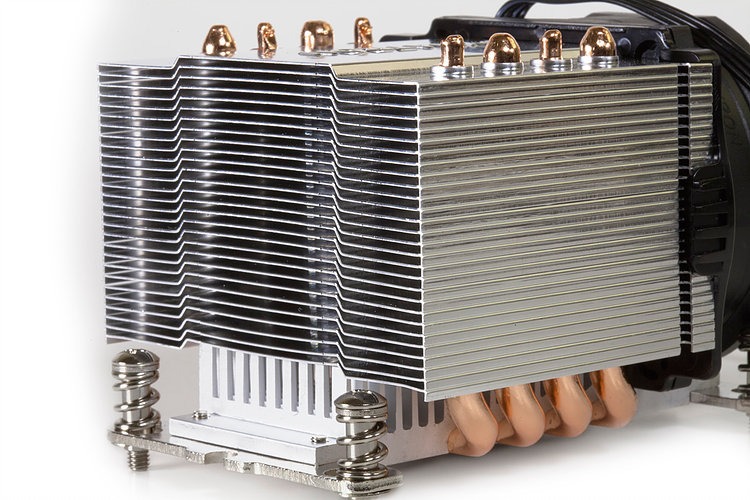

Aluminum Stacked Fin with Heat Pipes directly contact CPU

Fan Dimension

60 x 60 x 28 mm

Speed

At Duty Cycle 20%: 1300±300 RPM
At Duty Cycle 50%: 3500±10% RPM
At Duty Cycle 100%: 7000±10% RPM

Bearing

Double-Ball

Rated Voltage

12V

Power

At Duty Cycle 20%: 0.60 W
At Duty Cycle 50%: 1.68 W
At Duty Cycle 100%: 9.60 W

AIr Flow

At Duty Cycle 20%: 8.10 CFM
At Duty Cycle 50%: 20.26 CFM
At Duty Cycle 100%: 40.53 CFM

Noise Level

At Duty Cycle 20%: 17.0 dBA
At Duty Cycle 50%: 31.9 dBA
At Duty Cycle 100%: 51.2 dBA

Air Pressure

At Duty Cycle 20%: 0.57 mm-H2O
At Duty Cycle 50%: 3.57 mm-H2O
At Duty Cycle 100%: 14.30 mm-H2O

Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
