描述

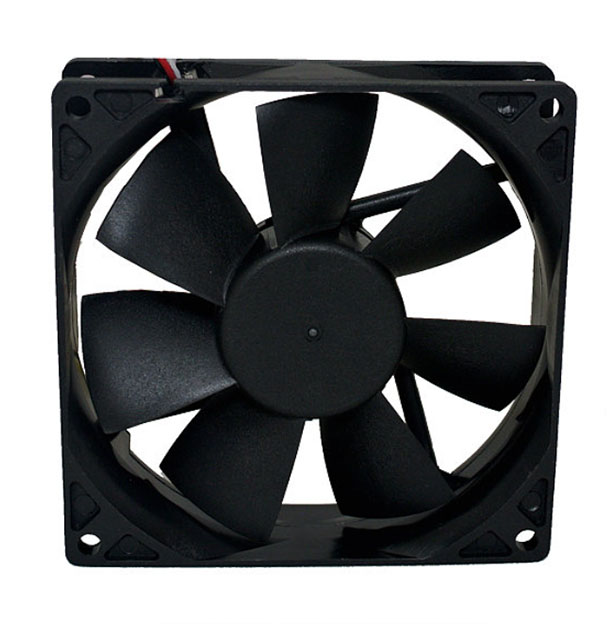

12V 92x92x25 mm DC fan from 2000 rpm to 4000 rpm fan speed.
Additional Information
|
Dimensions |
92 x 92 x 25 mm |
|
Frame |
PBT+30%GF UL94V-0 (Black) |
|
Impeller |
PBT+15%GF UL94V-0 (Black) |
|
Weight |
82 grams |
|
Operating Temparature |
– 10 °C ~ + 65 °C (65 %RH) |
|
Storage Temperature |
– 30 °C ~ + 70 °C (65 %RH) |
|
Notes |
(1) Bearing: Dual Ball Bearing (2) MTBF(Operating temp. 40°C ) : Dual Ball Bearing: 70,000 hours (3) Connector Types: 3 Pin / 4 Pin Molex / 4 Pin PWM / Customized Connectors |
*All product specifications and product images are subject to change without notice.
Variations
|
Model No. |
DF129225BU |
DF129225BH |
DF129225BM |
DF129225BL |
DF129225BE |
|
Voltage (V) |
12 |
12 |
12 |
12 |
12 |
|
Speed (RPM) |
4000 |
3500 |
3000 |
2500 |
2000 |
|
Bearing |
Dual Ball |
Dual Ball |
Dual Ball |
Dual Ball |
Dual Ball |
|
Current (Amp) |
0.50 |
0.36 |
0.25 |
0.17 |
0.13 |
|
Watts (W) |
6.00 |
4.32 |
3.0 |
2.04 |
1.56 |
|
Air Flow (CFM) |
71.50 |
61.52 |
53.57 |
43.36 |
35.70 |
|
Static Pressure (mm/H2O) |
7.60 |
5.92 |
4.29 |
3.00 |
1.91 |
|
Noise (dBA) |
41.58 |
39.40 |
35.98 |
31.92 |
27.17 |
Downloads
UL Certificate
