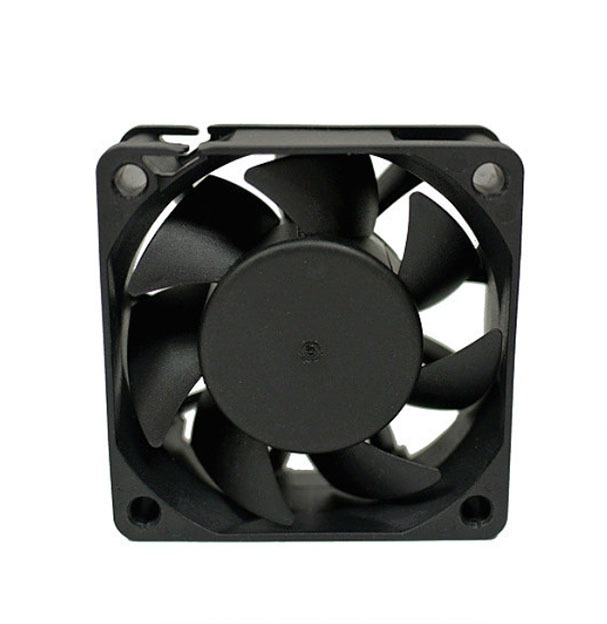

12V 60x60x25 mm DC fan from 5000 rpm to 9000 rpm fan speed.
Additional Information
|
Dimensions |
60 x 60 x 25 mm |
|
Frame |
PBT+30%GF UL94V-0 (Black) |
|
Impeller |
PBT+15%GF UL94V-0 (Black) |
|
Weight |
72 grams |
|
Operating Temparature |
– 10 °C ~ + 65 °C (65 %RH) |
|
Storage Temperature |
– 30 °C ~ + 70 °C (65 %RH) |
|
Notes |
(1) Available in Sleeve Bearing, Dual Ball Bearing |
*All product specifications and product images are subject to change without notice.
Variations
|
Model No. |
DF126025_U |
DF126025_H |
DF126025_M |
DF126025_L |
DF126025_E |
|
Voltage (V) |
12 |
12 |
12 |
12 |
12 |
|
Speed (RPM) |
8500 |
8000 |
7000 |
6000 |
5000 |
|
Bearing |
SB |
SB |
SB |
SB |
SB |
|
Current (Amp) |
0.80 |
0.60 |
0.45 |
0.30 |
0.25 |
|
Watts (W) |
9.60 |
7.20 |
5.40 |
3.60 |
3.00 |
|
Air Flow (CFM) |
48.78 |
43.49 |
38.28 |
32.84 |
26.45 |
|
Static Pressure (mm/H2O) |
21.38 |
17.25 |
13.55 |
10.04 |
7.32 |
|
Noise (dBA) |
53.80 |
52.10 |
48.10 |
43.20 |
38.70 |
Model Number System DF126025BH-3G
|
Voltage |
DC |
|
Voltage Range |
12V |
|
Type |
Fan |
|
Size L*W*H (mm) |
60*60*25 |
|
Bearing System |
Dual Ball |
|
Speed |
High |
|
Connector |
3 pin with 3 wires connector |
|
RoHS |
Compliance |
Downloads
UL Certificate
