描述

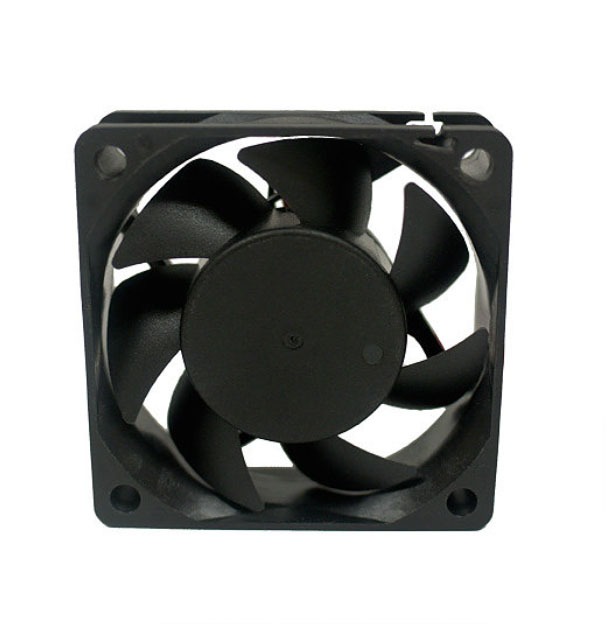

12V 60x60x15 mm DC fan from 3000rpm to 5000rpm fan speed.
Additional Information
|
Dimensions |
60 x 60 x 15 mm |
|
Frame |
PBT+30%GF UL94V-0 (Black) |
|
Impeller |
PBT+15%GF UL94V-0 (Black) |
|
Weight |
40 grams |
|
Operating Temparature |
– 10 °C ~ + 65 °C (65 %RH) |
|
Storage Temperature |
– 30 °C ~ + 70 °C (65 %RH) |
|
Notes |
(1) Bearing: Dual Ball Bearing (2) MTBF(Operating temp. 40°C ) : Dual Ball Bearing: 70,000 hours (3) Connector Types: 3 Pin / 4 Pin Molex / 4 Pin PWM / Customized Connectors |
*All product specifications and product images are subject to change without notice.
Variations
|
Model No. |
DF126015BH |
DF126015BM |
DF126015BL |
|
Voltage (V) |
12 |
12 |
12 |
|
Speed (RPM) |
5000 |
4000 |
3000 |
|
Bearing |
Duall Ball |
Duall Ball |
Duall Ball |
|
Current (Amp) |
0.40 |
0.24 |
0.20 |
|
Watts (W) |
4.80 |
2.88 |
2.40 |
|
Air Flow (CFM) |
28.80 |
22.00 |
16.50 |
|
Static Pressure (mm/H2O) |
5.40 |
3.40 |
1.90 |
|
Noise (dBA) |
35.90 |
30.70 |
24.50 |
