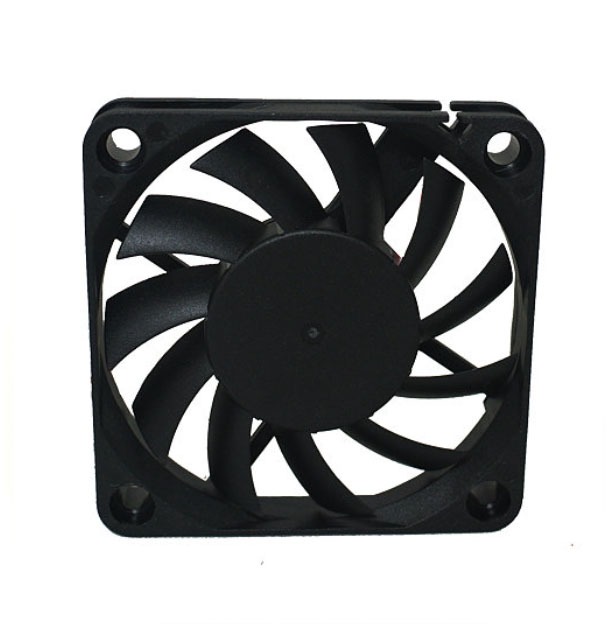

12V 60x60x10 mm DC fan from 3000rpm to 5300rpm fan speed.
Additional Information
|
Dimensions |
60 x 60 x 10 mm |
|
Frame |
PBT+30%GF UL94V-0 (Black) |
|
Impeller |
PBT+15%GF UL94V-0 (Black) |
|
Weight |
30 grams |
|
Operating Temparature |
– 10 °C ~ + 65 °C (65 %RH) |
|
Storage Temperature |
– 30 °C ~ + 70 °C (65 %RH) |
|
Notes |
(1) Bearing : Dual Ball Bearing (2) MTBF(Operating temp. 40°C ) : Dual Ball Bearing : 70,000 hours (3) Connector Types : 3 Pin / 4 Pin Molex / 4 Pin PWM / Customized Connectors |
*All product specifications and product images are subject to change without notice.
Variations
|
Model No. |
DF126010BH |
DF126010BM |
DF126010BL |
DF126010BE |
|
Voltage (V) |
12 |
12 |
12 |
12 |
|
Speed (RPM) |
5300 |
4500 |
3700 |
3000 |
|
Bearing |
Dual Ball |
Dual Ball |
Dual Ball |
Dual Ball |
|
Current (Amp) |
0.28 |
0.25 |
0.19 |
0.10 |
|
Watts (W) |
3.36 |
3.00 |
2.28 |
1.20 |
|
Air Flow (CFM) |
24.10 |
19.60 |
16.70 |
13.54 |
|
Static Pressure (mm/H2O) |
5.00 |
3.30 |
2.70 |
1.78 |
|
Noise (dBA) |
37.90 |
34.30 |
28.20 |
22.86 |
