描述

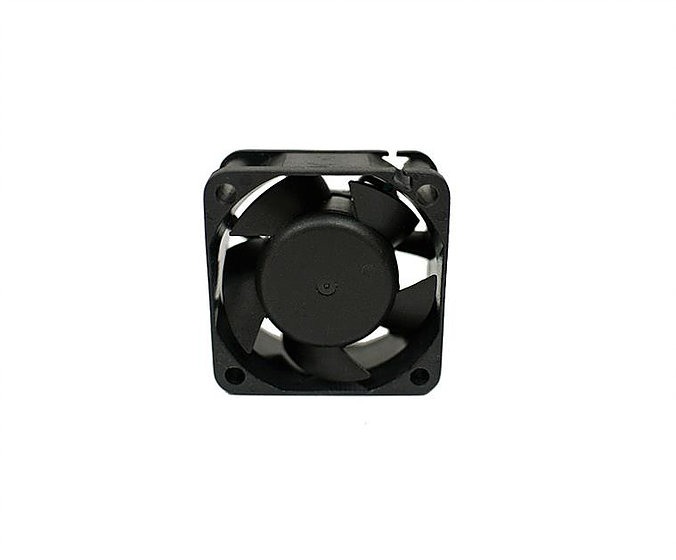

12V 40x40x20 mm DC fan is ideal for 1U server application. We offer fan speed from 6000rpm to high performance 11000rpm.
Additional Information
Dimensions | 40 x 40 x 20 mm |
Frame | PBT+30%GF UL94V-0 (Black) |
Impeller | PBT+15%GF UL94V-0 (Black) |
Weight | 26 grams |
Operating Temparature | – 10 °C ~ + 65 °C (65 %RH) |
Storage Temperature | – 30 °C ~ + 70 °C (65 %RH) |
Notes | (1) Bearing : Dual Ball Bearing (3) Connector Types: 3 Pin / 4 Pin Molex / 4 Pin PWM / Customized Connectors |
*All product specifications and product images are subject to change without notice.
Variations
|
Model No. |
DF124020BU |
DF124020BH |
DF124020BM |
DF124020BL |
DF124020BE |
|
Voltage (V) |
12 |
12 |
12 |
12 |
12 |
|
Speed (RPM) |
11000 |
9000 |
8000 |
7000 |
6000 |
|
Bearing |
Dual Ball |
Dual Ball |
Dual Ball |
Dual Ball |
Dual Ball |
|
Current (Amp) |
0.28 |
0.25 |
0.22 |
0.20 |
0.18 |
|
Watts (W) |
3.36 |
3.00 |
2.64 |
2.40 |
2.16 |
|
Air Flow (CFM) |
13.44 |
10.51 |
7.81 |
6.83 |
5.86 |
|
Static Pressure (mm/H2O) |
17.73 |
12.43 |
6.77 |
5.18 |
3.81 |
|
Noise (dBA) |
45.40 |
38.20 |
35.36 |
32.46 |
25.43 |
